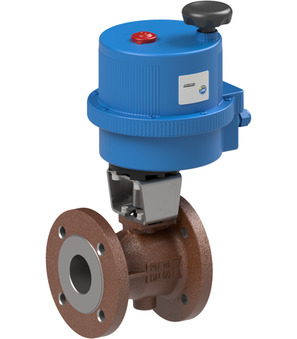

Flanged ball valve with electrical actuator BA040-50-0L

Flanged ball valve with electrical actuator BA040-50-0L

Flanged ball valve with electrical actuator Series BA040; Length According to EN558−1R24; Flansch PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Medium temperature -10...+120°C; Pressure range 0…16bar; DN 50mm; Length 150mm; Operating time 9s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.72 Kg
Short Itemnumber: BA040500L
https://www.stasto.eu/web/image/product.template/154655/image_1920?unique=e5e4a60

flanged ball valve with electrical actuator series BA040; length according to EN558−1R24; Flansch PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; medium temperature -10...+120°C; pressure range 0…16bar; DN 50mm; length 150mm; operating time 9s; voltage 24VAC/DC

944,60 € 944.6 EUR 944,60 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 50 mm
Length 150 mm
Electrical key figures
Voltage 24VAC/DC
characteristics
Actuator VB060L
Operating time 9 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series BA040_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Flanged ball valve with electrical actuator Series BA040_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA040500L.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s elektropohonem série BA040_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout - přírubový, s elektropohonem série BA040_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Elektroantrieb Serie BA040_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Flanschkugelhahn mit Elektroantrieb Serie BA040_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett karimás gömbcsap sorozat BA040_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett karimás gömbcsap sorozat BA040_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem elektrycznym Seria BA040_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy kołnierzowy z napędem elektrycznym Seria BA040_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Prirobnična krogelna pipa z električnim pogonom serija BA040_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije BA040_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije BA040_SRLATIN.pdf
Download
BA040-50-L-01 x 1.0
Flanged ball valve BA040-50-L-01
Flanged ball valve Series BA040-L-F; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 50mm; Length 150mm; Length EN558-1R14; Flange ISO5211 F05
Add to Cart
Electrical actuator VB060-L
VB060-L x 1.0
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
