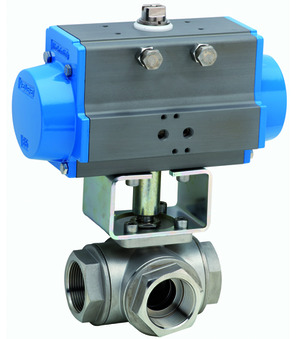

Ball valve with pneumatic actuator BA038-114-S0-0
Ball valve with pneumatic actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Free of oil and grease for oxygen; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 11/4"; Nominal diameter 25mm; Length 118,2mm; Actuator PAS0855; Ball T
Intrastat No.: 84818081
Country of origin: China
Short Itemnumber: BA038114S00
Country of origin: China
Short Itemnumber: BA038114S00
ball valve with pneumatic actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; free of oil and grease for oxygen; single acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 11/4"; nominal diameter 25mm; length 118,2mm; actuator PAS0855; ball T
| dimension | |
|---|---|
| Female thread | G 1 1/4" |
| DN | 25 mm |
| Length | 118,2 mm |
| Designs | |
| Ball | T |
| characteristics | |
| Actuator | PAS0855 |
No spare parts are available for this product.
