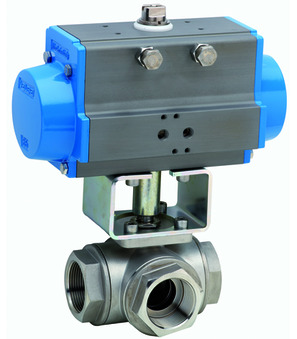

Ball valve with pneumatic actuator 8P03000106
Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Control pressure 6...8bar; Medium temperature -20...+160°C; Connection Compression sleeve Diameter 28mm; Pressure range 0...16bar; Nominal diameter 25mm; Actuator PAS0635; Ball T
Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.7 Kg
Short Itemnumber: 8P03000106
Country of origin: Italy
Weight: 6.7 Kg
Short Itemnumber: 8P03000106
ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 6...8bar; medium temperature -20...+160°C; connection compression sleeve diameter 28mm; pressure range 0...16bar; nominal diameter 25mm; actuator PAS0635; ball T
