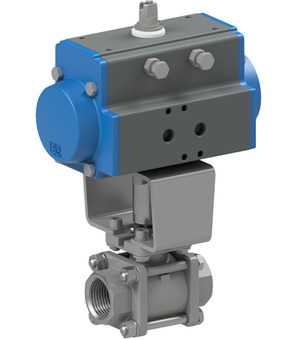

Ball valve with pneumatic actuator BA036-20-D0-01

Ball valve with pneumatic actuator BA036-20-D0-01

BA036-20-L-02
Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0…15bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Length 136mm; V-Ball 90°
PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.16 Kg
Short Itemnumber: BA03620D001
https://www.stasto.eu/web/image/product.template/217571/image_1920?unique=6c1dfb8

BA036-20-L-02
ball valve made of stainless steel series BA036; for steam; full bore; three-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; pressure range steam 0…14bar; medium temperature -20...+198°C; RP 2"; nominal diameter 50mm; length 136mm; V-ball 90°
PAD075
pneumatic actuator series PAD; ATEX II 2 G/D c T6; double acting; rotation angle 90°; according to ISO 5211/NAMUR; operating pressure range max. 8bar; diameter 75mm; flange ISO5211 F05/F07; female square 17mm; torque at 5,5bar 66Nm
RI3034
mounting bracket; F07/F05-F05; bolt 17-10

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Design
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread RP 2"
DN 50 mm
Length 136 mm
Design ATEX
Documents
Data sheets, drawings and CAD files
Female thread RP 2"
DN 50 mm
Length 136 mm
Design ATEX

BA036-20-D0-01

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA036-20-L-02
BA036-20-L-02 x 1.0 Pcs
Ball valve made of stainless steel BA036-20-L-02
Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0…15bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Length 136mm; V-Ball 90°
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
