STASTO Allgemeine Preisliste (EUR)

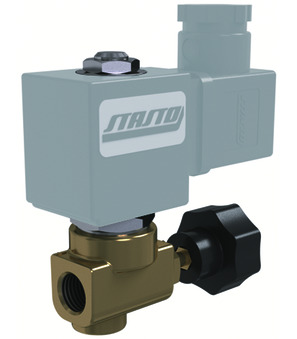

21A16KV25-BDV08024DY-C003-32-LV-2

21A16KV25-BDV08024DY-C003-32-LV-2

21A16KV25
2/2-way solenoid valve Series 21A16; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Flow control; Standard coil BDV; Connector size 32mm; G 1/4"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Seal FKM; Medium -10/+140°C; Length 32,5mm
BDV08024DY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

2/2-Wege-Magnetventil Serie 21A16
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.35 Kg
Short Itemnumber: 21A16KV25BDV08024DYC00332LV2
https://www.stasto.eu/web/image/product.template/191398/image_1920?unique=5a4e198

21A16KV25
2/2-way solenoid valve series 21A16; directly operated; NC; body brass; tube stainless steel one-piece; flow control; standard coil BDV; connector size 32mm; G 1/4"; DN 2,5mm; pressure AC 0-14bar; pressure DC 0-9bar; seal FKM; medium -10/+140°C; length 32,5mm
BDV08024DY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24V/50-60Hz
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

92,90 € 92.9 EUR 92,90 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/4"
DN 2,5 mm
Length 32,5 mm
Pressure AC 0...14 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/4"
DN 2,5 mm
Length 32,5 mm
Pressure AC 0...14 bar
Pressure DC 0...9 bar
Seal FKM
Medium temperature -10...+140 °C
Voltage 24V/50-60Hz
Design With integrated LED-yellow and VDR
Voltage type AC
Approval UL/CSA/VDE

21A16KV25-BDV08024DY-C003-32-LV-2

Documents

9 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

3
English
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

3
French / Français
ZIP

Data Sheets

3

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

3
2/2-way solenoid valve 21A16KV25
21A16KV25 x 1.0 Pcs
2/2-way solenoid valve 21A16KV25
2/2-way solenoid valve Series 21A16; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Flow control; Standard coil BDV; Connector size 32mm; G 1/4"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Seal FKM; Medium -10/+140°C; Length 32,5mm
BDV08024DY
BDV08024DY x 1.0 Pcs
BDV08024DY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-LV-2
C003-32-LV-2 x 1.0 Pcs
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
