2/2-way solenoid valve 21A16KV25
2/2-way solenoid valve 21WA4Z0B130-BDA08012CS-C003-32-6
2/2-way solenoid valve 21WA4Z0B130-BDA08012CS-C003-32-6
135,60 €
135,60 €
2/2-way solenoid valve 21WA4Z0B130-BDA08012CS-C003-32-LV-2
2/2-way solenoid valve 21WA4Z0B130-BDA08012CS-C003-32-LV-2
141,10 €
141,10 €

2/2-way solenoid valve 21A16KV25

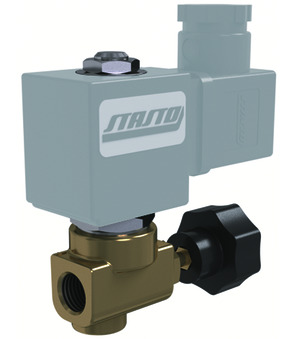

2/2-way solenoid valve Series 21A16; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Flow control; Standard coil BDV; Connector size 32mm; G 1/4"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Seal FKM; Medium -10/+140°C; Length 32,5mm

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.18 Kg
Short Itemnumber:21A16KV25
https://www.stasto.eu/web/image/product.template/2522/image_1920?unique=5a4e198

2/2-way solenoid valve Series 21A16; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Flow control; Standard coil BDV; Connector size 32mm; G 1/4"; DN 2,5mm; Pressure AC 0-14bar; Pressure DC 0-9bar; Seal FKM; Medium -10/+140°C; Length 32,5mm

57,20 € 57.2 EUR 57,20 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 2,5 mm
Length 32,5 mm
Designs
Connector size 32 mm
pressure
Pressure AC 0...14 bar
Pressure DC 0...9 bar
materials
Seal FKM
characteristics
Coil BDV
Medium temperature -10...+140 °C
