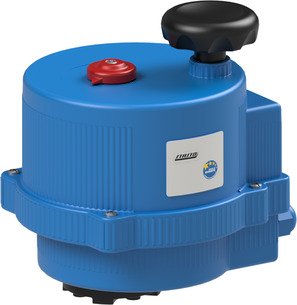

Electrical actuator VB190-H-P0S

Electrical actuator VB190-H-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

Intrastat No.: 85013100
Country of origin: Italy
Weight: 4.85 Kg
Short Itemnumber: VB190HP0S
https://www.stasto.eu/web/image/product.template/78525/image_1920?unique=0ec923a

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

1.095,90 € 1095.9 EUR 1.095,90 €

Not Available For Sale

excl. tax
  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Torque 190 Nm
Operating time 27 s
Flange ISO5211 F07/F10-star 17mm
Voltage 100-240VAC
All specifications (5)
Documents
Data sheets, drawings and CAD files
Torque 190 Nm
Operating time 27 s
Flange ISO5211 F07/F10-star 17mm
Voltage 100-240VAC
Protection class IP67

VB190-H-P0S

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
40406280004 x 1.0 Pcs
40406280004
Electric motor; VB060-H; VB060L; VB110-H; VB110-L; VB270-H; VB270-L, VB350-H; VB350-L
