Electrical actuator VB190-H-AKKU
  2. STASTO Store
  3. Electrical actuator VB190-H-AKKU
Electrical actuator VB190-L-AKKU-N0
Electrical actuator VB190-L-AKKU-N0
982,10 €
982,10 €
Electrical actuator VB270-H-AKKU
Electrical actuator VB270-H-AKKU
1.152,10 €
1.152,10 €

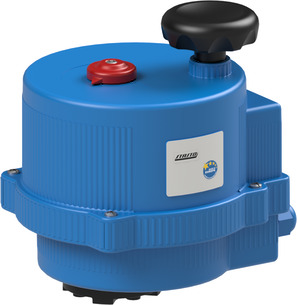

Electrical actuator VB190-H-AKKU

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100…240VAC; Function NC

Intrastat No.: 85013100
Country of origin: Italy
Weight: 5.27 Kg
Short Itemnumber:VB190HAKKU
https://www.stasto.eu/web/image/product.template/79148/image_1920?unique=0ec923a

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100…240VAC; Function NC

1.041,50 € 1041.5 EUR 1.041,50 €

price on request

  • Function
  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time

This combination does not exist.

Availability:
Contact Us
function
Function NC
Designs
Flange ISO5211 F07/F10-star 17mm
Electrical key figures
Voltage 100-240VAC
characteristics
Torque 190 Nm
Operating time 27 s
No spare parts are available for this product.
Accessories
function
Function NC
Designs
Flange ISO5211 F07/F10-star 17mm
Electrical key figures
Voltage 100-240VAC
characteristics
Torque 190 Nm
Operating time 27 s
