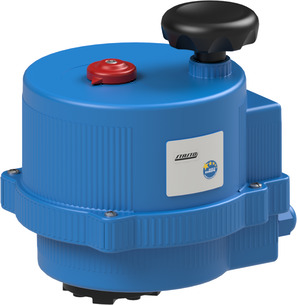

Electrical actuator VB110-L-AKKU-N0
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Function NO
Country of origin: Italy
Weight: 5.3 Kg
Short Itemnumber:VB110LAKKUN0
electrical actuator series VB-AKKU; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67; including accumulator for safety position; torque 110Nm; operating time 27s; flange ISO5211 F07/F10-Stern 17 mm; voltage 24VAC/DC; function NO
| function | |
|---|---|
| Function | NO |
| Designs | |
| Flange ISO5211 | F07/F10-star 17mm |
| Electrical key figures | |
| Voltage | 24VAC/DC |
| characteristics | |
| Torque | 110 Nm |
| Operating time | 27 s |
