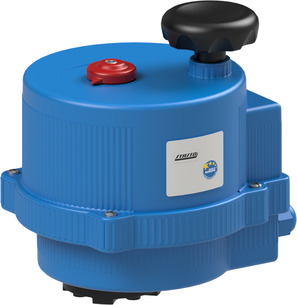

Electrical actuator VB030-H-AKKU

Electrical actuator VB030-H-AKKU

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100…240VAC; Function NC

Intrastat No.: 85013100
Country of origin: Italy
Weight: 2.44 Kg
Short Itemnumber: VB030HAKKU
https://www.stasto.eu/web/image/product.template/67402/image_1920?unique=0ec923a

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100…240VAC; Function NC

780,80 € 780.8 EUR 780,80 €

Not Available For Sale

excl. tax
  • Function
  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Torque 30 Nm
Operating time 8 s
Flange ISO5211 F03/F05-star 11mm
Voltage 100-240VAC
All specifications (5)
Torque 30 Nm
Operating time 8 s
Flange ISO5211 F03/F05-star 11mm
Voltage 100-240VAC
Function NC
No spare parts are available for this product.
