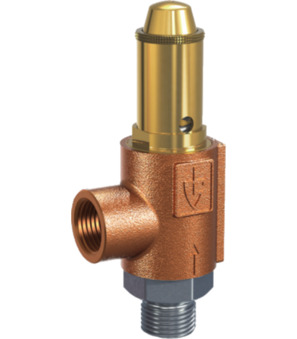

Safety valve SV80-14-6-6-0
safety valve series SV80; with twist lifting; body stainless steel/bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…225°C; incl. ATEX-certificate; inlet male G 1/4"; DN 6mm; outlet female G 1/2"; discharge capacity at 6bar(g) air 99,5 Nm3/h; set pressure 6bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.5 Kg
Short Itemnumber: SV8014660
Country of origin: Germany
Weight: 0.5 Kg
Short Itemnumber: SV8014660
safety valve series SV80; with twist lifting; body stainless steel/bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…225°C; incl. ATEX-certificate; inlet male G 1/4"; DN 6mm; outlet female G 1/2"; discharge capacity at 6bar(g) air 99,5 Nm3/h; set pressure 6bar
| dimension | |
|---|---|
| DN | 10 mm |
| Inlet male | G 1/2" |
| Outlet female | G 1/2" |
| design | |
| Design | ATEX |
| characteristics | |
| Set pressure | 29 bar |
| Blow-off capacity at 6 bar air | 288,7 Nm3/h |
No spare parts are available for this product.
