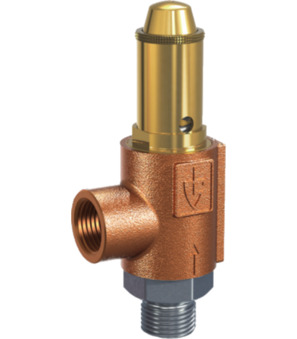

Safety valve 1/2"-10-1/2"-288,7-25
Safety valve Series SV80; With twist lifting; Body Stainless steel/Bronze; Seal PTFE; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -60…225°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inlet male G 1/2"; DN 10mm; Outlet female G 1/2"; Discharge capacity at 6bar(g) air 288,7Nm3/h; Set pressure 25Bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.45 Kg
Short Itemnumber:SV801210253C
Country of origin: Germany
Weight: 0.45 Kg
Short Itemnumber:SV801210253C
safety valve series SV80; with twist lifting; body stainless steel/bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…225°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inlet male G 1/2"; DN 10mm; outlet female G 1/2"; discharge capacity at 6bar(g) air 288,7Nm3/h; set pressure 25bar
| dimension | |
|---|---|
| DN | 10 mm |
| Inlet male | G 1/2" |
| Outlet female | G 1/2" |
| characteristics | |
| Set pressure | 25 bar |
| Blow-off capacity at 6 bar air | 288,7 Nm3/h |
No spare parts are available for this product.
