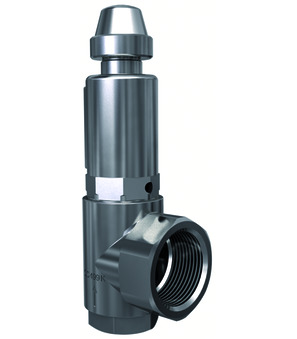

SV60-10NW-23-232PS-4T0
safety valve series SV60; with lifting lever; with metal bellow; body stainless steel AISI 316L; seal FKM; application: Gaseous media; medium temperature -20…+200°C; DN 23mm; inlet male thread 1"NPT; outlet female thread 11/2"NPT; set pressure 232/16 unit psi/bar; incl. TÜV-inspection certificate EN-10204-3.2; certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); inspection certificate EN-10204-3.1; for material; ATEX-certificate; EAC-certificate; with valve pass and laser marking
Country of origin: Germany
Short Itemnumber: SV6010NW23232PS4T0
safety valve series SV60; with lifting lever; with metal bellow; body stainless steel AISI 316L; seal FKM; application: Gaseous media; medium temperature -20…+200°C; DN 23mm; inlet male thread 1"NPT; outlet female thread 11/2"NPT; set pressure 232/16 unit psi/bar; incl. TÜV-inspection certificate EN-10204-3.2; certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); inspection certificate EN-10204-3.1; for material; ATEX-certificate; EAC-certificate; with valve pass and laser marking
| Design | ATEX |
