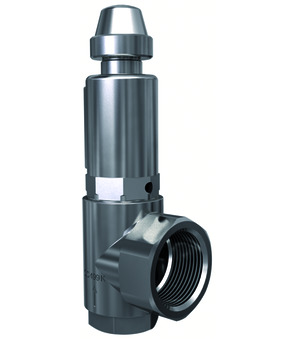

Safety valve Series SV60; With lifting lever; With metal bellow; Body Stainless steel AISI 316L; Seal FKM; Application: Gaseous media; Medium temperature -20...200°C; Inlet Male thread 1"NPT; Outlet Female thread 11/2"NPT; DN 23mm; Set pressure 16/1600; Unit bar/kPa; Incl. TÜV-Inspection certificate EN-10204-3.2; Certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); Inspection certificate EN-10204-3.1; For material; ATEX-certificate; EAC-Certificate; With valve pass And Laser marking
Country of origin: Germany
Weight: 2.45 Kg
Short Itemnumber: SV6010NW23164T0
safety valve series SV60; with lifting lever; with metal bellow; body stainless steel AISI 316L; seal FKM; application: Gaseous media; medium temperature -20...200°C; inlet male thread 1"NPT; outlet female thread 11/2"NPT; DN 23mm; set pressure 16/1600; unit bar/kPa; incl. TÜV-inspection certificate EN-10204-3.2; certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); inspection certificate EN-10204-3.1; for material; ATEX-certificate; EAC-certificate; with valve pass and laser marking
| DN | 23 mm |
| Set pressure | 16/1600 |
| Unit | bar/kPa |
| Seal | FKM |
| Medium temperature | -20...+200 °C |
| Design | ATEX |
