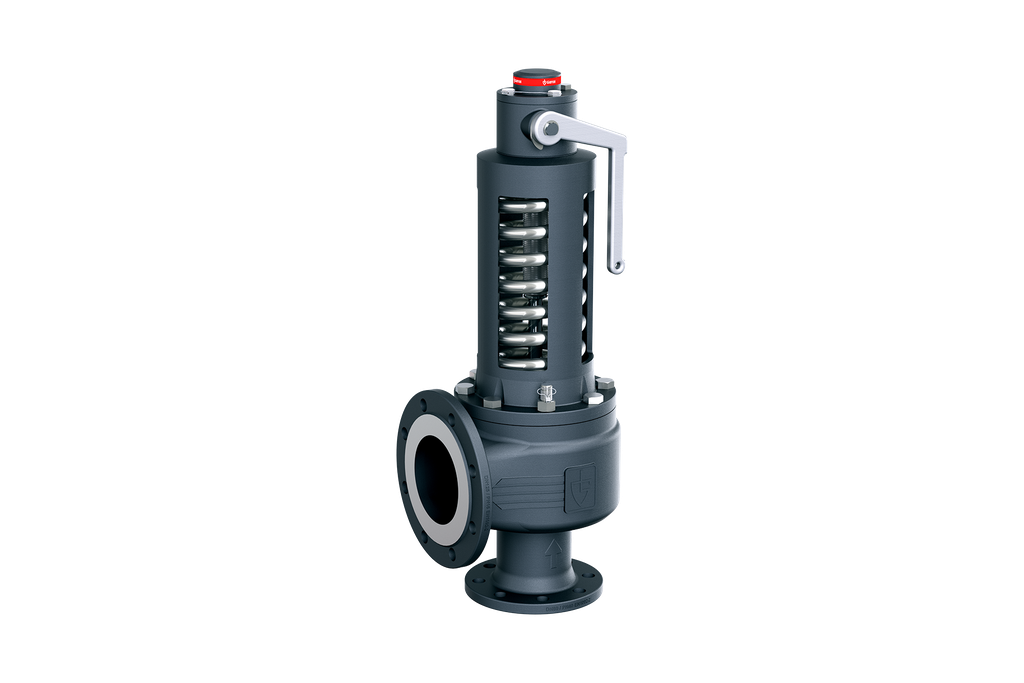

Safety valve Series SV52-3C; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inlet DN25/PN40; Outlet DN40/PN16; Seal metallisch; Medium temperature -60...+350°C; Set pressure 8,5bar
Country of origin: Germany
Weight: 26.0 Kg
Short Itemnumber: SV52254W22.58.53C
safety valve series SV52-3C; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inlet DN25/PN40; outlet DN40/PN16; seal metallisch; medium temperature -60...+350°C; set pressure 8,5bar
Technical specifications
| Inlet | DN25/PN40 |
|---|---|
| Outlet | DN40/PN16 |
| Seal | Metallic |
| Medium temperature | -60...+350 °C |
| Inlet | DN25/PN40 |
| Outlet | DN40/PN16 |
| Seal | Metallic |
| Medium temperature | -60...+350 °C |
| Set pressure | 8,5 bar |
SV52-254W-22,5-8,5-3C
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
