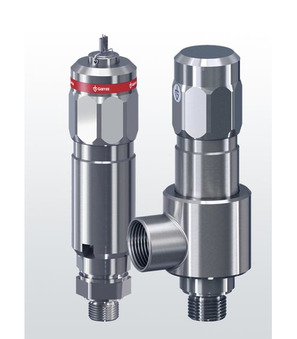

Safety valve mit Drehanlüftung-G1/2"-ins Freie abblasend-9-59
Safety valve Series SV51; Body 1.4404; Compression spring Stainless steel; Seal Metallic/Polyamide; Application: Compressed air, Gases; Medium temperature -60…180°C; Lifting device mit Drehanlüftung; Inlet G1/2"; Outlet ins Freie abblasend; DN 9mm; Set pressure 59bar
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.85 Kg
Short Itemnumber: SV5112959
Country of origin: Germany
Weight: 0.85 Kg
Short Itemnumber: SV5112959
safety valve series SV51; body AISI 316L; compression spring stainless steel; seal metallic/polyamide; application: compressed air, gases; medium temperature -60…180°C; lifting device mit Drehanlüftung; inlet G1/2"; outlet ins Freie abblasend; DN 9mm; set pressure 59bar
| dimension | |
|---|---|
| DN | 9 mm |
| Inlet | G1/2" |
| Outlet | ins Freie abblasend |
| design | |
| Lifting device | With twist lifting |
| characteristics | |
| Set pressure | 59 bar |
No spare parts are available for this product.
