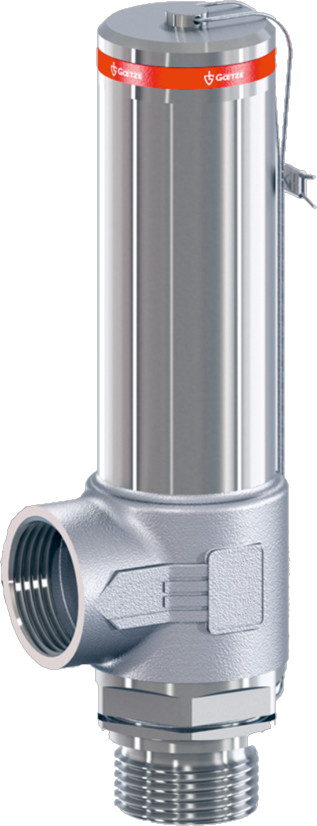

Safety valve SV30-114W-23-16-3B
Safety valve; For cryogenic applications; Inlet body 1.4404; Outlet body 1.4408; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G11/4"; DN 23mm; Outlet female G2"; Set pressure 16 Bar; Incl. TÜV-Inspection certificate EN-10204-3.2 Inspection certificate EN-10204-3.1; For material
Country of origin: Germany
Weight: 6.4 Kg
Short Itemnumber: SV30114W23163B
Safety valve; For cryogenic applications; Inlet body AISI 316L; Outlet body AISI 316; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G11/4"; DN 23mm; Outlet female G2"; Set pressure 16 Bar; Incl. TÜV-Inspection certificate EN-10204-3.2 Inspection certificate EN-10204-3.1; For material
| dimension | |
|---|---|
| DN | 23 mm |
| Inlet male | G 1 1/4" |
| Outlet female | G 2" |
| characteristics | |
| Set pressure | 16 bar |
