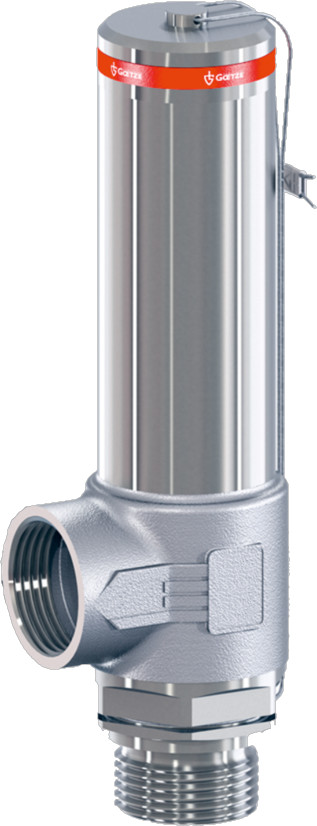

Safety valve SV30-10W-18-16-3B
Safety valve; For cryogenic applications; Inlet body 1.4404; Outlet body 1.4408; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G1"; DN 18mm; Outlet female G11/2"; Set pressure 16 Bar; Incl. TÜV-Inspection certificate EN-10204-3.2 Inspection certificate EN-10204-3.1; For material
Country of origin: Germany
Weight: 6.4 Kg
Short Itemnumber: SV3010W18163B
Safety valve; For cryogenic applications; Inlet body AISI 316L; Outlet body AISI 316; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G1"; DN 18mm; Outlet female G11/2"; Set pressure 16 Bar; Incl. TÜV-Inspection certificate EN-10204-3.2 Inspection certificate EN-10204-3.1; For material
| dimension | |
|---|---|
| DN | 18 mm |
| Inlet male | G 1" |
| Outlet female | G 1 1/2" |
| characteristics | |
| Set pressure | 16 bar |
