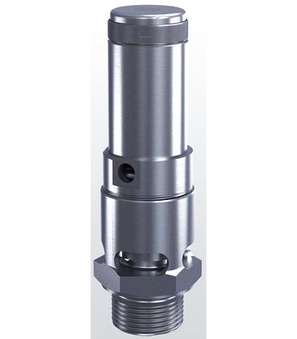

Safety valve 1/4"-7,5-FKM--20...200-15
Safety valve Series SV25; With twist lifting; Body Stainless steel AISI 316Ti; Compression spring Stainless steel AISI 301; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/4"; DN 7,5mm; Seal FKM; Medium temperature -20...200°C; Set pressure 15Bar
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.1 Kg
Short Itemnumber: SV25147.515
Country of origin: Germany
Weight: 0.1 Kg
Short Itemnumber: SV25147.515
safety valve series SV25; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/4"; DN 7,5mm; seal FKM; medium temperature -20...200°C; set pressure 15bar
| dimension | |
|---|---|
| Male thread | G 1/4" |
| DN | 7,5 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 15 bar |
| Medium temperature | -20...+200 °C |
No spare parts are available for this product.
