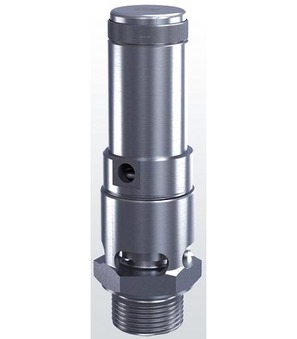

Safety valve SV25-12-11-0,2-3C
safety valve series SV25; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/2"; DN 11mm; seal FKM; medium temperature -20...200°C; set pressure 0,2bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness;
Country of origin: Germany
Weight: 0.163 Kg
Short Itemnumber: SV2512110.23C
safety valve series SV25; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/2"; DN 11mm; seal FKM; medium temperature -20...200°C; set pressure 0,2bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness;
| dimension | |
|---|---|
| Male thread | G 1/2" |
| DN | 11 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 0,2 bar |
| Medium temperature | -20...+200 °C |
