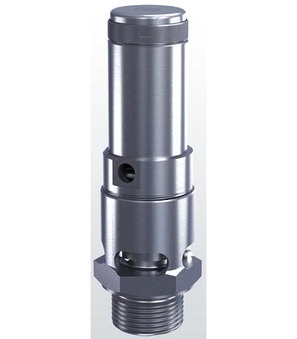

Safety valve 1"-20-7-FKM--20...200°C
Safety valve Series SV25; With twist lifting; Body Stainless steel AISI 316Ti; Compression spring Stainless steel AISI 301; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Incl. TÜV-Inspection certificate EN-10204-3.2; G 1"; DN 20mm; Set pressure 7Bar; Seal FKM; Medium temperature -20...200°C°C
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.53 Kg
Short Itemnumber: SV25102073G
Country of origin: Germany
Weight: 0.53 Kg
Short Itemnumber: SV25102073G
safety valve series SV25; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; incl. TÜV-inspection certificate EN-10204-3.2; G 1"; DN 20mm; set pressure 7bar; seal FKM; medium temperature -20...200°C°C
| dimension | |
|---|---|
| Male thread | G 1" |
| DN | 20 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 7 bar |
| Medium temperature | -20...+200 °C |
No spare parts are available for this product.
