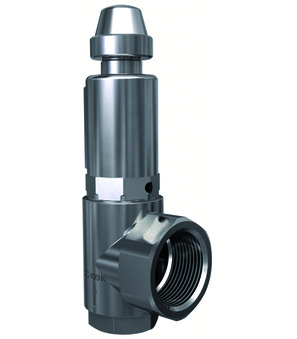

Safety valve 3/4"NPT-1"NPT-15,8-10-EPDM--40…170
Safety valve Series SV12; With twist lifting; With metal bellow Stainless steel AISI 316Ti; Body Stainless steel AISI 316L; Inlet Male thread 3/4"NPT; Outlet Female thread 1"NPT; DN 15,8mm; Seal EPDM; Medium temperature -40…170°C; Set pressure 10Bar; Incl. TÜV-Inspection certificate EN-10204-3.2; ATEX-certificate; Inspection certificate EN-10204-3.1; For material
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.51 Kg
Short Itemnumber: SV1234W1N1510E3Z
Country of origin: Germany
Weight: 0.51 Kg
Short Itemnumber: SV1234W1N1510E3Z
safety valve series SV12; with twist lifting; with metal bellow stainless steel AISI 316Ti; body stainless steel AISI 316L; inlet male thread 3/4"NPT; outlet female thread 1"NPT; DN 15,8mm; seal EPDM; medium temperature -40…170°C; set pressure 10bar; incl. TÜV-inspection certificate EN-10204-3.2; ATEX-certificate; inspection certificate EN-10204-3.1; for material
| Design | ATEX |
No spare parts are available for this product.
