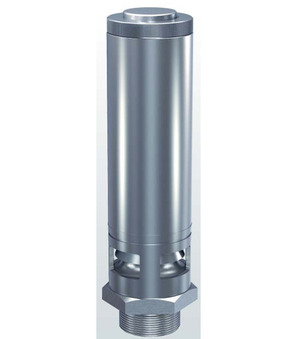

Safety valve NBR--30...+130-3/4"NPT-20-174psi
Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Seal NBR; Medium temperature -30...+130°C; Connection 3/4"NPT; DN 20mm; Set pressure 174psi
Intrastat No.: 84814010
Country of origin: Germany
Weight: 1.08 Kg
Short Itemnumber: SV1134N20174PS3E0
Country of origin: Germany
Weight: 1.08 Kg
Short Itemnumber: SV1134N20174PS3E0
safety valve series SV11; with twist lifting; body AISI 316L; compression spring AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; seal NBR; medium temperature -30...+130°C; connection 3/4"NPT; DN 20mm; set pressure 174psi
| dimension | |
|---|---|
| Connection | 3/4" NPT |
| DN | 20 mm |
| materials | |
| Seal | NBR |
| characteristics | |
| Set pressure | 174 psi |
| Medium temperature | -30...+130 °C |
No spare parts are available for this product.
