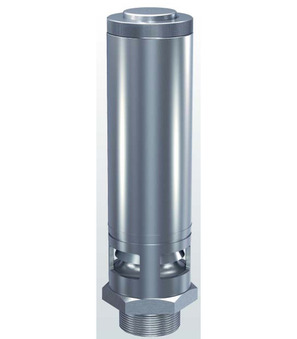

Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Connection 2"; DN 48mm; Set pressure 11; Seal NBR; Medium temperature -30...130°C
Country of origin: Germany
Weight: 5.3 Kg
Short Itemnumber: SV11204811
safety valve series SV11; with twist lifting; body AISI 316L; compression spring AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; connection 2"; DN 48mm; set pressure 11; seal NBR; medium temperature -30...130°C
Technical specifications
| Connection | 2" |
|---|---|
| DN | 48 mm |
| Set pressure | 11 bar |
| Seal | NBR |
| Connection | 2" |
| DN | 48 mm |
| Set pressure | 11 bar |
| Seal | NBR |
| Medium temperature | -30...+130 °C |
| Male thread | G 2" |
SV11-20-48-11
