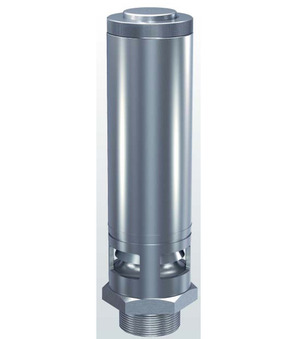

Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Connection 1/2"; DN 14mm; Set pressure 8; Seal NBR; Medium temperature -30...130°C
Country of origin: Germany
Weight: 0.5 Kg
Short Itemnumber: SV1112148
safety valve series SV11; with twist lifting; body AISI 316L; compression spring AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; connection 1/2"; DN 14mm; set pressure 8; seal NBR; medium temperature -30...130°C
Technical specifications
| Connection | 1/2" |
|---|---|
| DN | 14 mm |
| Set pressure | 8 bar |
| Seal | NBR |
| Connection | 1/2" |
| DN | 14 mm |
| Set pressure | 8 bar |
| Seal | NBR |
| Medium temperature | -30...+130 °C |
| Male thread | G 1/2" |
SV11-12-14-8
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV11 · DE
Data sheet 4,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV11 · EN
Data sheet 4,0 MB Updated 13/06/2026
