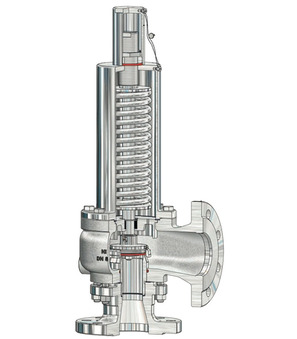

Safety valve Series SV10; For vapors, gases and liquids; Body Stainless steel AISI 316Ti; Spring cover And Outlet body Stainless steel AISI 316Ti; Inlet DN50/PN16; Outlet DN50/PN16; DN 40mm; Valve head C; Seat seal FKM; Other seals FKM; Set pressure 5,5bar; Free of oil and grease for hydrogen
Country of origin: Germany
Weight: 15.5 Kg
Short Itemnumber: SV1050405.5V01
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN50/PN16; outlet DN50/PN16; DN 40mm; valve head C; seat seal FKM; other seals FKM; set pressure 5,5bar; free of oil and grease for hydrogen
Technical specifications
| Inlet | DN50/PN16 |
|---|---|
| Outlet | DN50/PN16 |
| DN | 40 mm |
| Valve head | C |
| Inlet | DN50/PN16 |
| Outlet | DN50/PN16 |
| DN | 40 mm |
| Valve head | C |
| Set pressure | 5,5 bar |
| Seat seal | FKM |
| Other seals | FKM |
SV10-50-40-5,5-V-01
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV10 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV10 · EN
Data sheet 13,1 MB Updated 13/06/2026
