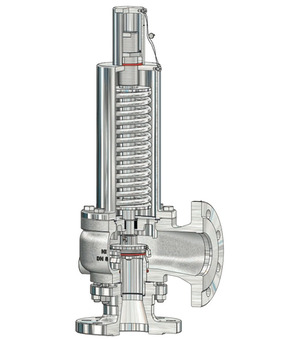

Safety valve Series SV10; For vapors, gases and liquids; Body Stainless steel AISI 316Ti; Spring cover And Outlet body Stainless steel AISI 316Ti; Inlet DN15/ANSI150; Outlet DN15/ANSI150; DN 12,5mm; Valve head C; Seat seal FKM; Other seals FKM; Set pressure 22bar
Country of origin: Germany
Weight: 4.3 Kg
Short Itemnumber: SV1015A12.522V
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN15/ANSI150; outlet DN15/ANSI150; DN 12,5mm; valve head C; seat seal FKM; other seals FKM; set pressure 22bar
Technical specifications
| Inlet | DN15/ANSI150 |
|---|---|
| DN | 12,5 mm |
| Valve head | C |
| Outlet | DN15/ANSI150 |
| Inlet | DN15/ANSI150 |
| DN | 12,5 mm |
| Valve head | C |
| Outlet | DN15/ANSI150 |
| Seat seal | FKM |
| Other seals | FKM |
| Set pressure | 22 bar |
SV10-15A-12,5-22-V
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV10 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV10 · EN
Data sheet 13,1 MB Updated 13/06/2026
