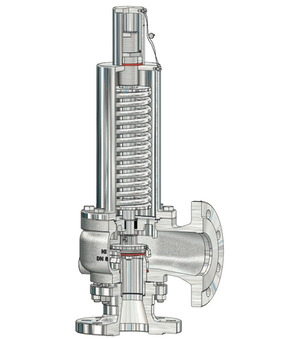

safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN15/PN16; outlet DN15/PN16; DN 12,5mm; valve head C; seat seal FKM; other seals FKM; set pressure 3bar
Country of origin: Germany
Weight: 4.0 Kg
Short Itemnumber: SV101512.53V
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN15/PN16; outlet DN15/PN16; DN 12,5mm; valve head C; seat seal FKM; other seals FKM; set pressure 3bar
Technical specifications
| DN | 12,5 mm |
|---|---|
| Inlet | DN15/PN16 |
| Outlet | DN15/PN16 |
| Valve head | C |
| DN | 12,5 mm |
| Inlet | DN15/PN16 |
| Outlet | DN15/PN16 |
| Valve head | C |
| Seat seal | FKM |
| Other seals | FKM |
| Set pressure | 3 bar |
SV10-15-12.5-3-V
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV10 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV10 · EN
Data sheet 13,1 MB Updated 13/06/2026
