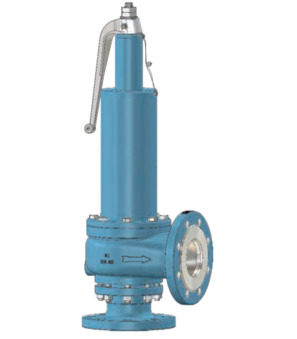

safety valve series SV09; for vapors, gases and liquids; body steel ASTM A105; spring cover and outlet body EN-GJS-400-18-LT; inlet DN25/PN16; outlet DN25/PN16; DN 16mm; valve head C; seat seal AISI 316Ti; other seals PTFE; set pressure 4bar
Country of origin: Germany
Weight: 4.6 Kg
Short Itemnumber: SV0925164D
safety valve series SV09; for vapors, gases and liquids; body steel ASTM A105; spring cover and outlet body EN-GJS-400-18-LT; inlet DN25/PN16; outlet DN25/PN16; DN 16mm; valve head C; seat seal AISI 316Ti; other seals PTFE; set pressure 4bar
| Inlet | DN25/PN16 |
| DN | 16 mm |
SV09-25-16-4-D
Documents
German / Deutsch
Data Sheets
1-
PDF
Sicherheitsventil Serie SV09-SV10-SV44 · DE
Data sheet 13,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Sicherheitsventil Serie SV09-SV10-SV44 · EN
Data sheet 13,1 MB Updated 13/06/2026
