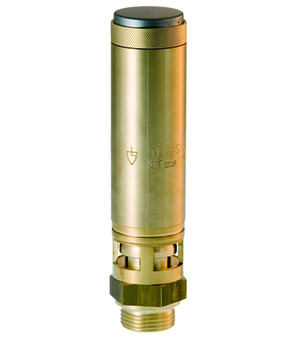

Safety valve SV02-10-24-10-EC
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; G 1"; DN 24mm; set pressure 10bar; EAC-certificate; with valve pass and laser marking
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.3 Kg
Short Itemnumber: SV02102410EC
Country of origin: Germany
Weight: 1.3 Kg
Short Itemnumber: SV02102410EC
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; G 1"; DN 24mm; set pressure 10bar; EAC-certificate; with valve pass and laser marking
| dimension | |
|---|---|
| Female thread | G 1" |
| DN | 24 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 10 bar |
No spare parts are available for this product.
