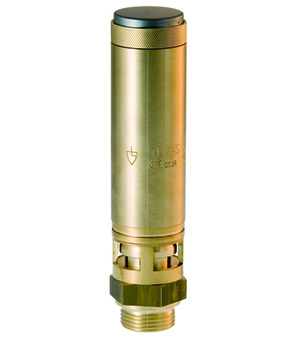

Safety valve SV02-10-24-1,2-3C
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; G 1"; DN 24mm; Set pressure 1,2bar; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.089 Kg
Short Itemnumber: SV0210241.23C
Country of origin: Germany
Weight: 1.089 Kg
Short Itemnumber: SV0210241.23C
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; G 1"; DN 24mm; set pressure 1,2bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
| dimension | |
|---|---|
| Female thread | G 1" |
| DN | 24 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 1,2 bar |
No spare parts are available for this product.
