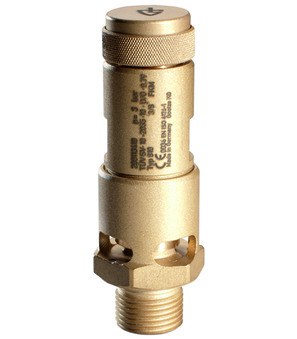

Safety valve SV01-14-7.5-2,4-3G
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; seal FKM; connection G 1/4"; DN 7,5mm; set pressure 2,4bar; incl. TÜV-inspection certificate EN-10204-3.2
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.092 Kg
Short Itemnumber: SV01147.52.43G
Country of origin: Germany
Weight: 0.092 Kg
Short Itemnumber: SV01147.52.43G
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; seal FKM; connection G 1/4"; DN 7,5mm; set pressure 2,4bar; incl. TÜV-inspection certificate EN-10204-3.2
| dimension | |
|---|---|
| Connection | G 1/4" |
| DN | 7,5 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 2,4 bar |
No spare parts are available for this product.
