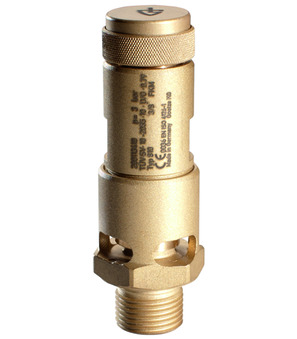

Safety valve FKM-1/2"-11-8,5
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. TÜV-Inspection certificate EN-10204-3.2; Seal FKM; Connection G 1/2"; DN 11mm; Set pressure 8,5bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.19 Kg
Short Itemnumber: SV0112118.53G
Country of origin: Germany
Weight: 0.19 Kg
Short Itemnumber: SV0112118.53G
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. TÜV-Inspection certificate EN-10204-3.2; Seal FKM; Connection G 1/2"; DN 11mm; Set pressure 8,5bar
| dimension | |
|---|---|
| Connection | G 1/2" |
| DN | 11 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 8,5 bar |
No spare parts are available for this product.
