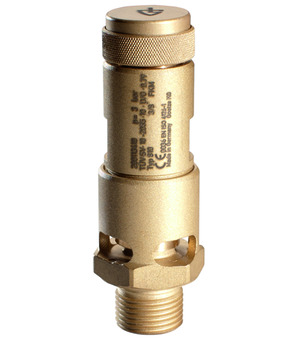

Safety valve PTFE-1"-20-44
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -60…225°C; Seal PTFE; Connection G 1"; DN 20mm; Set pressure 44bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV01102044T
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV01102044T
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; seal PTFE; connection G 1"; DN 20mm; set pressure 44bar
| dimension | |
|---|---|
| Male thread | G 1" |
| DN | 20 mm |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 44 bar |
No spare parts are available for this product.
