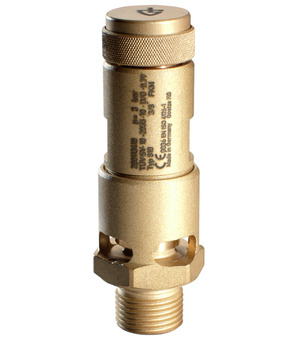

Safety valve SV01-10-20-2,5-3G
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. TÜV-inspection certificate EN-10204-3.2; seal FKM; connection G 1"; DN 20mm; set pressure 2,5bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV0110202.53G
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV0110202.53G
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. TÜV-inspection certificate EN-10204-3.2; seal FKM; connection G 1"; DN 20mm; set pressure 2,5bar
| dimension | |
|---|---|
| Connection | G 1" |
| DN | 20 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 2,5 bar |
No spare parts are available for this product.
