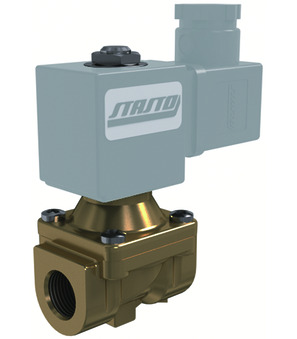

SL200-38-GDV14024CY
SL200-38-BDA08012CS-C003-32-LV-2
SL200-38-BDA08012CS-C003-32-LV-2
93,20 €
93,20 €
SL200-38-BDA08024CS
SL200-38-BDA08024CS
85,40 €
85,40 €

SL200-38-GDV14024CY

SL200-38
2/2-way solenoid valve Series SL200, 21H; Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 12mm; Pressure AC 0,1...20bar; Pressure DC 0,1...10bar; Length 50mm
GDV14024CY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24VDC; Approval CSA/UL/VDE

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.69 Kg
Short Itemnumber:SL20038GDV14024CY
https://www.stasto.eu/web/image/product.template/182739/image_1920?unique=c5de58b

SL200-38
2/2-way solenoid valve series SL200, 21H; pilot-operated; NC; body brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/8"; DN 12mm; pressure AC 0,1...20bar; pressure DC 0,1...10bar; length 50mm
GDV14024CY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 24VDC; approval CSA/UL/VDE

121,70 € 121.7 EUR 121,70 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/8"
DN 12 mm
Length 50 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 24VDC
pressure
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
materials
Seal NBR
characteristics
Coil GDV
Medium temperature -10...+90 °C
Approval UL/CSA/VDE
