STASTO Allgemeine Preisliste (EUR)

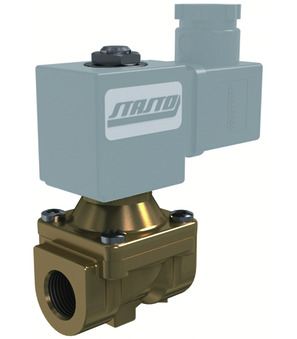

2/2-way solenoid valve SL200-38-BDA08024CS-C003-32-LV-2

2/2-way solenoid valve SL200-38-BDA08024CS-C003-32-LV-2

SL200-38
2/2-way solenoid valve Series SL200, 21H; Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 12mm; Pressure AC 0,1...20bar; Pressure DC 0,1...10bar; Length 50mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

2/2-Wege-Magnetventil Serie SL200, 21H
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.48 Kg
Short Itemnumber: SL20038BDA08024CSC00332LV2
https://www.stasto.eu/web/image/product.template/182480/image_1920?unique=eb38ccc

SL200-38
2/2-way solenoid valve series SL200, 21H; pilot-operated; NC; body brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/8"; DN 12mm; pressure AC 0,1...20bar; pressure DC 0,1...10bar; length 50mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

93,20 € 93.2 EUR 93,20 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/8"
DN 12 mm
Length 50 mm
Pressure AC 0,1...20 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 3/8"
DN 12 mm
Length 50 mm
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
Seal NBR
Medium temperature -10...+90 °C
Voltage 24VDC
Voltage type DC
Design With integrated LED-yellow and VDR
Approval CE

SL200-38-BDA08024CS-C003-32-LV-2

Documents

8 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

2
English
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

2
French / Français
ZIP

Data Sheets

3

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

2
2/2-way solenoid valve SL200-38
SL200-38 x 1.0 Pcs
2/2-way solenoid valve SL200-38
2/2-way solenoid valve Series SL200, 21H; Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 12mm; Pressure AC 0,1...20bar; Pressure DC 0,1...10bar; Length 50mm
BDA08024CS
BDA08024CS x 1.0 Pcs
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-32-LV-2
C003-32-LV-2 x 1.0 Pcs
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
