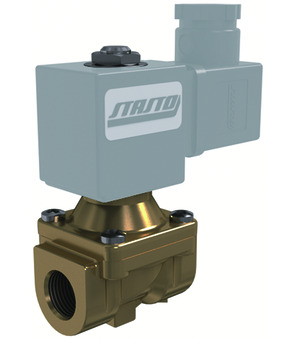

2/2-way solenoid valve SL200-12-V-GDV14024CY-C003-32-6

2/2-way solenoid valve SL200-12-V-GDV14024CY-C003-32-6

SL200-12-V
2/2-way solenoid valve series SL200-V, 21H-V; pilot-operated; NC; body brass; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G G1/2"; DN 12mm; pressure AC 0,1…20bar; pressure DC 0,1…10bar; length 50mm
GDV14024CY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 24VDC; approval CSA/UL/VDE
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.71 Kg
Short Itemnumber: SL20012VGDV14024CYC003326
https://www.stasto.eu/web/image/product.template/223578/image_1920?unique=d5ecd09

SL200-12-V
2/2-way solenoid valve series SL200-V, 21H-V; pilot-operated; NC; body brass; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G G1/2"; DN 12mm; pressure AC 0,1…20bar; pressure DC 0,1…10bar; length 50mm
GDV14024CY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 24VDC; approval CSA/UL/VDE
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

128,20 € 128.2 EUR 128,20 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Connector
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/2"
DN 12 mm
Length 50 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
pressure
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval UL/CSA/VDE
