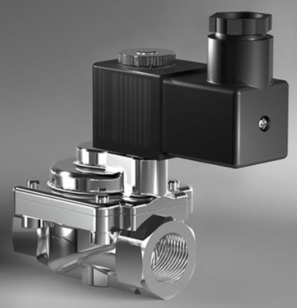

2/2-way solenoid valve SL097-12-TV-22-02
2/2-way solenoid valve; Pilot-operated; NC; Piston type; Body Brass; Seal PTFE/FKM; Connector size 32mm; Pressure 0,5…40bar; Medium temperature -10...+80°C; Incl. coil; G 1/2"; DN 13,5mm; Length 67mm; Voltage 230V/50-60Hz; ATEX Ex II 2G Ex mb IIC T4 Gb And Ex II 2D Ex mb tb IIIC T130°C Db; Free of oil and grease for oxygen
Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: SL09712TV2202
Country of origin: Germany
Short Itemnumber: SL09712TV2202
2/2-way solenoid valve; pilot-operated; NC; piston type; body brass; seal PTFE/FKM; connector size 32mm; pressure 0,5…40bar; medium temperature -10...+80°C; incl. coil; G 1/2"; DN 13,5mm; length 67mm; voltage 230V/50-60Hz; ATEX Ex II 2G Ex mb IIC T4 Gb and Ex II 2D Ex mb tb IIIC T130°C Db; free of oil and grease for oxygen
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 13,5 mm |
| Length | 67 mm |
| design | |
| Design | ATEX |
| Electrical key figures | |
| Voltage | 230V/50-60Hz |
No spare parts are available for this product.
