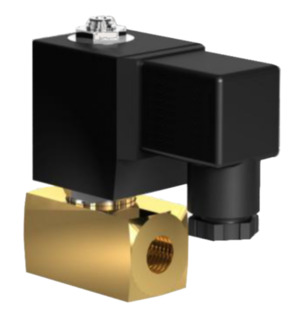

3/2-way solenoid valve Series SL095; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; G 1/8"; DN 1mm; Pressure 0...50bar; Length 40mm; Seal FKM; Medium temperature -10...80°C; Voltage 24VDC
Country of origin: Germany
Weight: 0.5 Kg
Short Itemnumber: SL0951810301
Scope of delivery
3/2-way solenoid valve series SL095; directly operated; NC; body brass; tube stainless steel one-piece; G 1/8"; DN 1mm; pressure 0...50bar; length 40mm; seal FKM; medium temperature -10...80°C; voltage 24VDC
Technical specifications
| Female thread | G 1/8" |
|---|---|
| DN | 1 mm |
| Pressure | 0...50 bar |
| Length | 40 mm |
| Female thread | G 1/8" |
| DN | 1 mm |
| Pressure | 0...50 bar |
| Length | 40 mm |
| Seal | FKM |
| Medium temperature | -10...+80 °C |
| Voltage | 24VDC |
SL095-18-1-03-01
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · 3/2-Wege-Magnetventil Serie SL095 · DE
Data sheet 1,1 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · 3/2-way solenoid valve Series SL095 · EN
Data sheet 1,1 MB Updated 13/06/2026
