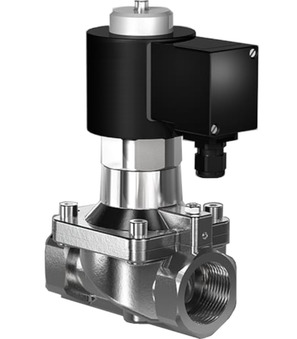

2/2-way solenoid valve Series SL053; Combined operated; NO; Body Stainless steel AISI 316Ti; Medium temperature -10...+80°C; Incl. coil and connector; Seal NBR; G 2"; DN 50mm; Pressure 0...16bar; Length 168mm; Voltage 24VDC
Country of origin: Germany
Weight: 7.1 Kg
Short Itemnumber: SL053200301
2/2-way solenoid valve series SL053; combined operated; NO; body stainless steel AISI 316Ti; medium temperature -10...+80°C; incl. coil and connector; seal NBR; G 2"; DN 50mm; pressure 0...16bar; length 168mm; voltage 24VDC
Technical specifications
| Seal | NBR |
|---|---|
| Female thread | G 2" |
| DN | 50 mm |
| Pressure | 0...16 bar |
| Seal | NBR |
| Female thread | G 2" |
| DN | 50 mm |
| Pressure | 0...16 bar |
| Length | 168 mm |
| Voltage | 24VDC |
| Seal | NBR |
SL053-20-03-01
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · 2/2-Wege-Magnetventil Serie SL053 · DE
Data sheet 3,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · 2/2-way solenoid valve Series SL053 · EN
Data sheet 2,9 MB Updated 13/06/2026
