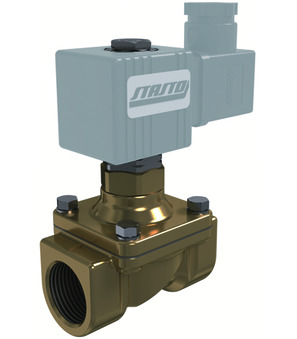

2/2-way solenoid valve SL049-34-BDA08024CS

2/2-way solenoid valve SL049-34-BDA08024CS

SL049-34
2/2-way solenoid valve Series SL049; Combined operated; NO; Body Brass; Stainless steel tube One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC/DC 0...10bar; Length 70mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.73 Kg
Short Itemnumber:SL04934BDA08024CS
https://www.stasto.eu/web/image/product.template/182734/image_1920?unique=eb38ccc

SL049-34
2/2-way solenoid valve series SL049; combined operated; NO; body brass; stainless steel tube one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/4"; DN 16mm; pressure AC/DC 0...10bar; length 70mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC

164,20 € 164.2 EUR 164,20 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 16 mm
Length 70 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0...10 bar
materials
Seal NBR
characteristics
Coil BDA
Approval CE
