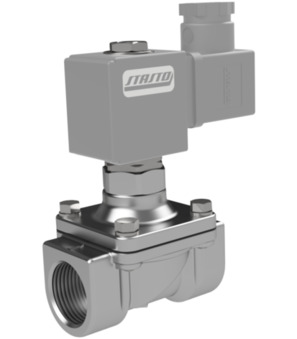

2/2-way solenoid valve SL035-34-BDA08012CS-C003-31-CV20-6

Price.

358,10 €
2/2-way solenoid valve Series SL035 Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - combined operated
  5. 2/2-way solenoid valve Series SL035
  6. SL035-34-BDA08012CS-C003-31-CV20-6
2/2-way solenoid valve SL035-34-BDA08012CS-C003-31-CV20-6
2/2-way solenoid valve SL035-34-BDA08012CS-C003-32-6
2/2-way solenoid valve SL035-34-BDA08012CS-C003-32-6
348,36 €
348,36 €
2/2-way solenoid valve SL035-34-BDA08012CS-C003-32-LV-2
2/2-way solenoid valve SL035-34-BDA08012CS-C003-32-LV-2
353,60 €
353,60 €

2/2-way solenoid valve SL035-34-BDA08012CS-C003-31-CV20-6

SL035-34
2/2-way solenoid valve Series SL035; Combined operated; NO; Body Stainless steel AISI 316; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...120°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC/DC 0...10bar; Length 75mm
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.94 Kg
Short Itemnumber:SL03534BDA08012CSC00331CV206
https://www.stasto.eu/web/image/product.template/195213/image_1920?unique=4081206

SL035-34
2/2-way solenoid valve series SL035; combined operated; NO; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...120°C; standard coil BDA; connector size 32mm; G 3/4"; DN 20mm; pressure AC/DC 0...10bar; length 75mm
BDA08012CS
coil type BDA; standard; connector size 32mm; voltage 12VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

358,10 € 358.1 EUR 358,10 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Coil
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 20 mm
Length 75 mm
Designs
Connector size 32 mm
design
Design With moulded PVC-cable (2 m)
Electrical key figures
Voltage 12VDC
Voltage type DC
pressure
Pressure AC/DC 0...10 bar
characteristics
Coil BDA
Approval CE
