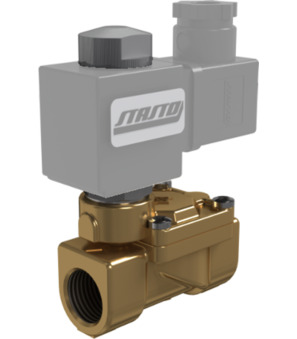

2/2-way solenoid valve SL012-10-BDV08024CY
2/2-way solenoid valve SL012-10
2/2-way solenoid valve SL012-10
346,20 €
346,20 €
SL012-10-BDV08024CY-C003-32-6
SL012-10-BDV08024CY-C003-32-6
378,40 €
378,40 €

2/2-way solenoid valve SL012-10-BDV08024CY

SL012-10
2/2-way solenoid valve Series SL012; Pilot-operated; NC; Piston type; Body Brass; Tube Stainless steel One-piece; Seal Fibre-glass-reinforced PTFE; Medium temperature -40...+180°C; Standard coil BDV; Connector size 32mm; G 1"; DN 25mm; Pressure AC/DC 0,9-10bar; Length 93mm
BDV08024CY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24VDC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.43 Kg
Short Itemnumber:SL01210BDV08024CY
https://www.stasto.eu/web/image/product.template/232585/image_1920?unique=eb38ccc

SL012-10
2/2-way solenoid valve series SL012; pilot-operated; NC; piston type; body brass; tube stainless steel one-piece; seal fibre-glass-reinforced PTFE; medium temperature -40...+180°C; standard coil BDV; connector size 32mm; G 1"; DN 25mm; pressure AC/DC 0,9-10bar; length 93mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC

376,10 € 376.1 EUR 376,10 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Coil
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 25 mm
Length 93 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0,9...10 bar
characteristics
Coil BDV
Approval UL/CSA/VDE
