STASTO Allgemeine Preisliste (EUR)
SL001-18-1,7-BDA08012CS-C003-31-CV20-6

SL001-18-1,7-BDA08012CS-C003-31-CV20-6

SL001-18-1,7

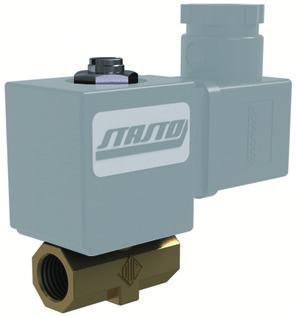

2/2-way solenoid valve Series SL001; Directly operated; NC; Body, Tube Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,7mm; Pressure AC 0-30bar; Pressure DC 0-20bar; Length 37mm
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie SL001
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.39 Kg
Short Itemnumber: SL001181.7BDA08012CSC00331CV206
https://www.stasto.eu/web/image/product.template/190443/image_1920?unique=c5de58b

SL001-18-1,7
2/2-way solenoid valve series SL001; directly operated; NC; body, tube brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 1/8"; DN 1,7mm; pressure AC 0-30bar; pressure DC 0-20bar; length 37mm
BDA08012CS
coil type BDA; standard; connector size 32mm; voltage 12VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

63,90 € 63.9 EUR 63,90 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/8"
DN 1,7 mm
Length 37 mm
Pressure AC 0...30 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/8"
DN 1,7 mm
Length 37 mm
Pressure AC 0...30 bar
Pressure DC 0...20 bar
Seal NBR
Medium temperature -10...+90 °C
Voltage 12VDC
Voltage type DC
Design With moulded PVC-cable (2 m)
Approval CE

SL001-18-1,7-BDA08012CS-C003-31-CV20-6

Documents

10 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

3
English
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

3
French / Français
ZIP

Data Sheets

4

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

3
2/2-way solenoid valve SL001-18-1,7
SL001-18-1,7 x 1.0 Pcs
2/2-way solenoid valve SL001-18-1,7
2/2-way solenoid valve Series SL001; Directly operated; NC; Body, Tube Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,7mm; Pressure AC 0-30bar; Pressure DC 0-20bar; Length 37mm
BDA08012CS
BDA08012CS x 1.0 Pcs
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
C003-31-CV20-6 x 1.0 Pcs
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
