STASTO Allgemeine Preisliste (EUR)

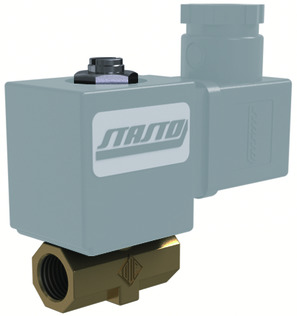

SL001-14-2,8-BDA08024DS-C003-32-LV-2

SL001-14-2,8-BDA08024DS-C003-32-LV-2

SL001-14-2,8
2/2-way solenoid valve Series SL001; Directly operated; NC; Body, Tube Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 2,8mm; Pressure AC 0-14bar; Pressure DC 0-10bar; Length 37mm
BDA08024DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

2/2-Wege-Magnetventil Serie SL001
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.25 Kg
Short Itemnumber: SL001142.8BDA08024DSC00332LV2
https://www.stasto.eu/web/image/product.template/211870/image_1920?unique=c5de58b

SL001-14-2,8
2/2-way solenoid valve series SL001; directly operated; NC; body, tube brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 1/4"; DN 2,8mm; pressure AC 0-14bar; pressure DC 0-10bar; length 37mm
BDA08024DS
coil type BDA; standard; connector size 32mm; voltage 24V/50-60Hz
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

59,30 € 59.3 EUR 59,30 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 2,8 mm
Pressure AC 0...14 bar
Length 37 mm
Seal NBR
All specifications (11)
Documents
Data sheets, drawings and CAD files
DN 2,8 mm
Pressure AC 0...14 bar
Length 37 mm
Seal NBR
Medium temperature -10...+90 °C
Female thread G 1/4"
Pressure DC 0...10 bar
Voltage 24V/50-60Hz
Voltage type AC
Design With integrated LED-yellow and VDR
Approval CE

SL001-14-2,8-BDA08024DS-C003-32-LV-2

Documents

9 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

3
English
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

3
French / Français
ZIP

Data Sheets

3

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

3
2/2-way solenoid valve SL001-14-2,8
SL001-14-2,8 x 1.0 Pcs
2/2-way solenoid valve SL001-14-2,8
2/2-way solenoid valve Series SL001; Directly operated; NC; Body, Tube Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 2,8mm; Pressure AC 0-14bar; Pressure DC 0-10bar; Length 37mm
BDA08024DS
BDA08024DS x 1.0 Pcs
BDA08024DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-LV-2
C003-32-LV-2 x 1.0 Pcs
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
