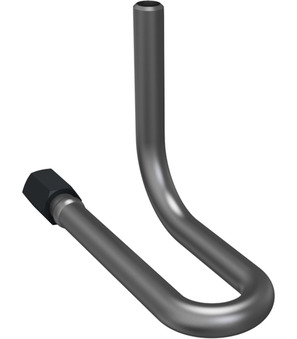

Siphon in U-shape According to DIN 16282 Series SI002; Welding connection; Pressure tap horizontal only; Clamping sleeve According to DIN 16283, AF27; Operating pressure max. 160bar at 120°C at siphon inlet, max. 120bar at 300°C at siphon inlet, max. 100bar at 400°C at siphon inlet; Connection 1/2"; Material Edelstahl 1.4571
Country of origin: Germany
Weight: 0.67 Kg
Short Itemnumber: SI00212W
siphon in U-shape according to DIN 16282 series SI002; welding connection; pressure tap horizontal only; clamping sleeve according to DIN 16283, AF27; operating pressure max. 160bar at 120°C at siphon inlet, max. 120bar at 300°C at siphon inlet, max. 100bar at 400°C at siphon inlet; connection 1/2"; material Edelstahl 1.4571
Technical specifications
| Connection | 1/2" |
|---|---|
| Material | Stainless steel AISI 316Ti |
| Connection | 1/2" |
| Material | Stainless steel AISI 316Ti |
SI002-12-W
