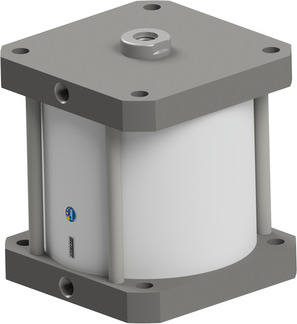

Short stroke magnetic cylinder SHDM125-50
Short stroke magnetic cylinder Series SHDM; Double acting;; Pressure range 1...10bar; Piston rod with female thread; Diameter 125mm; Stroke 50mm; Piston rod thread M14; Connection G 1/4"; Push force at 6 bar 7359N
Intrastat No.: 84123100
Country of origin: Italy
Weight: 4.21 Kg
Short Itemnumber: SHDM12550
Country of origin: Italy
Weight: 4.21 Kg
Short Itemnumber: SHDM12550
short stroke magnetic cylinder series SHDM; double acting;; pressure range 1...10bar; piston rod with female thread; diameter 125mm; stroke 50mm; piston rod thread M14; connection G 1/4"; push force at 6 bar 7359N
| dimension | |
|---|---|
| Diameter | 125 mm |
| Connection | G 1/4" |
| Stroke | 50 mm |
| Piston rod thread | M14 |
| function | |
| Function | Double acting |
| pressure | |
| Push force at 6 bar | 7359 N |
No spare parts are available for this product.
