Compact cylinders SHD200-100

Price.

1.440,90 €
Compact cylinder Series SHD Store
  1. Products
  2. Pneumatics
  3. Cylinders
  4. Compact cylinders with accessories
  5. Compact cylinder Series SHD
  6. SHD200-100
Compact cylinders SHD200-100
Compact cylinder SHD200-75
Compact cylinder SHD200-75
1.384,70 €
1.384,70 €
Compact cylinders SHD200-125
Compact cylinders SHD200-125
1.496,80 €
1.496,80 €

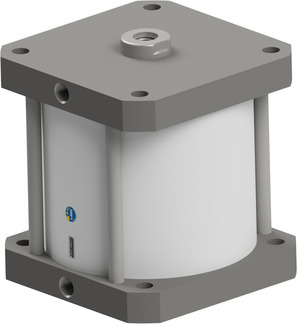

Compact cylinders SHD200-100

Compact cylinder Series SHD; Double acting; Pressure range 1...10bar; Diameter 200mm; Stroke 100mm; Piston rod thread M20; Connection 3/8"; Push force at 6 bar 18840N

Intrastat No.: 84123100
Country of origin: Italy
Weight: 12.7 Kg
Short Itemnumber:SHD200100
https://www.stasto.eu/web/image/product.template/62785/image_1920?unique=4a53954

Compact cylinder Series SHD; Double acting; Pressure range 1...10bar; Diameter 200mm; Stroke 100mm; Piston rod thread M20; Connection 3/8"; Push force at 6 bar 18840N

1.440,90 € 1440.9 EUR 1.440,90 €

price on request

  • Diameter
  • Connection
  • Stroke
  • Piston rod thread
  • Function
  • Push force at 6 bar

This combination does not exist.

Availability:
Contact Us
dimension
Diameter 200 mm
Connection 3/8"
Stroke 100 mm
Piston rod thread M20
function
Function Double acting
pressure
Push force at 6 bar 18840 N
