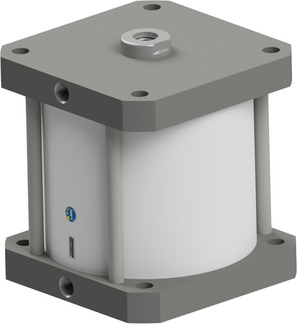

Compact cylinder Series SHD; Double acting; Pressure range 1...10bar; Diameter 160mm; Stroke 40mm; Piston rod thread M20; Connection 3/8"; Push force at 6 bar 12057N
Country of origin: Italy
Weight: 7.85 Kg
Short Itemnumber: SHD16040
compact cylinder series SHD; double acting; pressure range 1...10bar; diameter 160mm; stroke 40mm; piston rod thread M20; connection 3/8"; push force at 6 bar 12057N
Technical specifications
| Connection | 3/8" |
|---|---|
| Pressure range | 1...10bar |
| Diameter | 160 mm |
| Stroke | 40 mm |
| Connection | 3/8" |
| Pressure range | 1...10bar |
| Diameter | 160 mm |
| Stroke | 40 mm |
| Piston rod thread | M20 |
| Push force at 6 bar | 12057 N |
| Function | Double acting |
SHD160-40
